HTS Systems Lock N Roll, LLC.© is the first and only hand truck carrier manufacturer to provide the delivery industry

  with the safest, most efficient and profitable method for transporting, loading, unloading, locking and storage of hand

  trucks! HTS Systems applied state-of-the-art engineering technology and electronics to create a new ergonomic

  innovation and developed the Hand Truck Sentry System®. The HTS is the ultimate hand truck transport solution!

  The Hand Truck Sentry System® promises to increase route efficiency, fuel savings, worker productivity, highway safety

  and driver safety, thereby increasing the profitability of your delivery operations! Guaranteed!!

  The HTS or Hand Truck Sentry System® is a hand truck retaining apparatus that attaches to the front of most delivery

  vehicle bumpers or the rear frame. With a single forward motion; the HTS quickly secures and locks the hand truck to

  the exterior of the vehicle. The HTS is equipped with an interior dash release switch that includes an LED indicator light.

  The LED warning light operates in conjunction with an audio alarm to show the system is properly locked and the hand

  truck is safely aboard the vehicle before departure. Your route drivers will never drive-off without their hand truck again!

   vehicle grill and hood line. The driver must be able to see safely through and around the hand truck frame, so as not to obstruct road visibility.

  ATO Standard fuse  Add-A-Circuit      ATM Mini fuse  Add-A-Circuit              HTS common ground eyelet



Will the HTS Ultra-Rack fit my route vehicles?

Yes... the HTS is designed to fit most route delivery vehicles. We offer three (3) different HTS mounting

frames, each unit designed for a different vehicle mounting location or truck body. The HTS Systems' frames are identical, with the exception of the mounting (bumper/body mounts) components, reflectors and hardware.



How do I install the Hand Truck Sentry on my route vehicle?

Just double click on one of the Installation Download Instructions on the PDF links below, download your HTS installation manual and print it out. Read and follow the HTS installation steps and you're ready for the road.

If your delivery truck is a Ryder or Penske lease vehicle, please contact your local facility. Ryder and Penske can provide professional installations and service. Many of our customers use Penske or Ryder leased fleet vehicles.



HTS Ultra-Rack Installations and Assembly Instructions Download PDF Links:

User's computer must have Adobe Reader program installed to download, open file and view HTS instructions.













              If you don't have Adobe Reader, download Adobe Reader 8.1 for Microsoft Windows XP

                               or Microsoft Vista for free by clicking on the link provided below!







Access the vehicle engine compartment for maintenance safely and quickly on all Cab-over model trucks.

---

                                         VIDEO SOURCE: YOUTUBE.COM - DIRECT LINK CLICK HERE

---

The HTS T-Series HTS-10T Tilt Mount is designed for the front of most truck models. The HTS Tilt Mount has the ability to tilt forward and pivot 45° or 90° off the front vehicle bumper to clear the hood or cab-over body when accessing the engine compartment. Release the tilt latches and tilt unit 45° or tilt and lift to lower unit to 90° degrees.



Simply remove the hand truck from the HTS unit, place both index fingers and push down to release both tilt latches, tilt and swing the Hand Truck Sentry System forward 45 or 90 degrees. Unlock and swing the vehicle hood open. You can access the vehicle engine for routine maintenance in just seconds.

The HTS D-Series HTS-30D Direct Mount is designed for the rear of beverage (soda / beer / battery) Bay bodies.  The HTS Direct Mount is engineered for the vehicle exterior when the HTS unit does not conflict or interfere with doors, hood or cab-over trucks. The HTS Direct Mount can also be installed (where clearance is permitted) between the tractor power unit (rig) and trailer.



HTS Systems' HTS-30D Direct Mount Ultra-Rack unit securing B&P Manufacturing Liberator aluminum platform or (convertible) hand truck installed on LT Verrastro Beverage by Keystone Refinishing.

"The HTS is very easy to install.... and a superior method to offer my customers"

  Kevin May - Keystone Refinishing & SANDBLASTING - MADISONVILLE, PA.

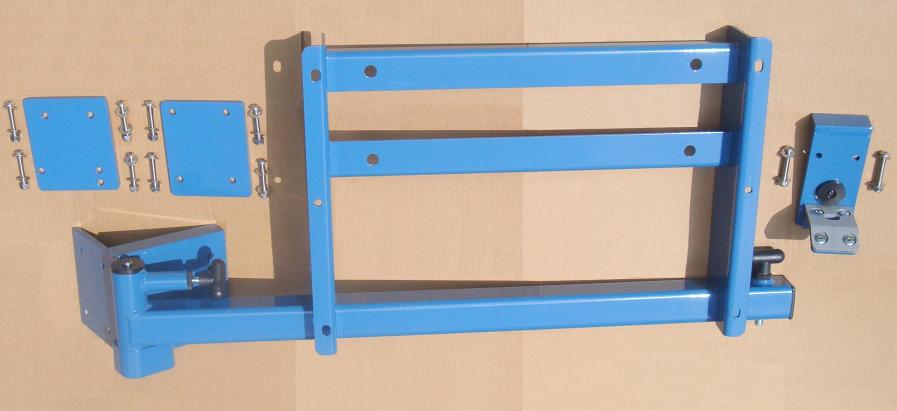

The HTS S-Series HTS-20S Swing Mount is designed for rear of full size commercial vans and smaller Sprinter vans. The HTS Swing Mount design is similar to an exterior wheel chair or scooter carrier and swings out from the van to access and open the secondary left side door. The HTS-20S Swing mount model will be available in Spring of 2008.



 Dodge Sprinter Fastenal Van displaying the new HTS-20S Swing Mount.  Ford F250 commercial delivery van and HTS-20S Swing Mount.

HTS Systems' HTS-20S Ultra-Rack for all Sprinter vans and all full size Ford commercial delivery vans.

In the commercial van market for companies that deliver parcels and documents, paper and janitorial products, food vending and medical supplies, there is no ideal method to safely transport a hand truck, without tossing it into the vehicle. Current methods take-up valuable cargo space, damage products and require greater physical effort to stow the hand truck. Our HTS-20S Swing Mount is designed for the rear of most delivery vans will solve nearly every issue associated with smaller delivery vehicles-hand truck operations, saving our customers time and money!



What types of materials and components go into the HTS Ultra-Rack?

After two years on the road, 5-6 days per week and thousands of cycles later, our first installation units still look and operate like new! The HTS Ultra-Rack is built tough and made to last! Only the highest quality components and materials are used to construct our HTS Systems products. The frame and components assembly are constructed from super tough, super strong, light-weight Nylon 66 glass-filled polymer. This new Nylon 66 polymer is extremely strong and a very light weight material. It can endure extreme temperatures without becoming soft in hot environments or brittle in cold weather. The polymer frame components are also reinforced with fiber glass particles to increase rigidity. All HTS parts components have been designed with state-of-the-art CAD engineering programs and advanced chemical engineered materials. The super tough, glass filled nylon #66 polymer used to manufacture the HTS has been tested and designed for many different applications for the automotive industry. We have selected some of the most advanced and strongest polymers in the world. The HTS was designed to perform in all environments and weather and built to last! The electrical components are the most advanced electronic hardware assemblies ever used for an automotive application. The HTS inductive proximity switch was designed specifically for HTS Systems and comes with a lifetime warranty!



"When the HTS Ultra-Rack is bolted securely to the delivery truck the rigidity of the vehicle's bumper

  and frame is transferred to the installed unit, making the Hand Truck Sentry System very strong!"

  Carl Boettcher - HTS Systems - National Accounts Manager - March 2007

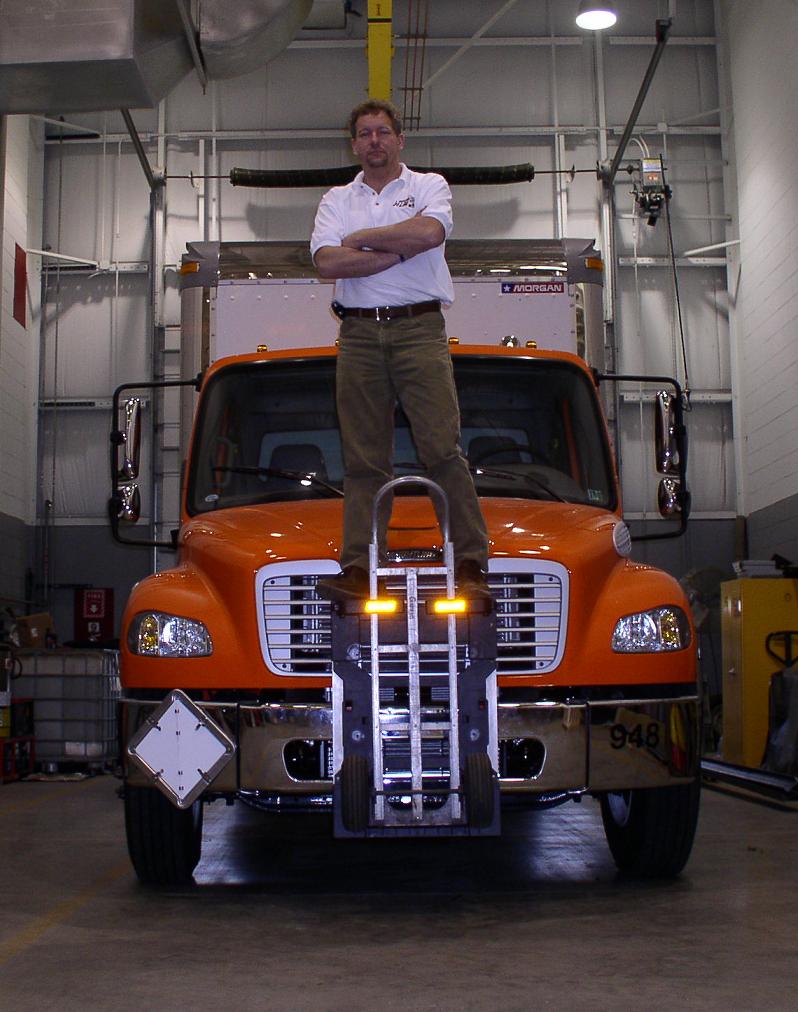

  WARNING: DO NOT climb and never step, stand or use the HTS as a ladder device as displayed in photo!



The HTS Ultra-Rack has performed over the road in ambient temperature ranges of -15°F to 101°F for more than a year! This HTS-10T

 Tilt Mount unit pictured above and below was placed into a refrigerated environment for deep freeze and ice testing at -10°F or 23.3°C

 for 6 days of adverse cold weather testing.



The HTS Ultra-Rack performed extremely well in dry cold tests and layered ice testing! These conditions simulate some of the winter climate conditions found on customer route delivery vehicles.

Conditions may vary, depending on adverse weather environments and sub-zero temperatures.

In steady Winter climates we recommend cleaning road dirt by lubricating unit with silicone spray and applying silicone grease in HTS Push-Bar rails every 4-6 months to prevent sticking.



The HTS units are assembled with stainless steel fasteners and super tough high impact polymers that will not rust or corrode like conventional steel brackets or metal hand truck retaining frames.



Images courtesy of T. Verrastro Beverage Distributors - Hazelton, PA and Hessco Beverage Bodies - Kulpsville, PA / 12°F - Jan. 2007 The Hand Truck Sentry System operates well in heat, rain, sleet, snow and cold weather temperature environments where salt and dirt conditions are typical on the rear or front of route delivery vehicles during the Winter season. This HTS-30D Direct Mount  in 12°F will rinse clean with rain water or soap

water solution.





Image courtesy of Penske Truck Corp. - Shillington, PA. /Canada Dry-Royal Crown Cola - Olyphant, PA. and Freightliner - Portland, OR.

Penske Truck - Freightliner M2 Business Class Beverage Truck in Winter snow and ice storm. Temp. 9° 12-07



How can my company benefit from using the Hand Truck Sentry System?

Where do we start!! There are so many individual and combined benefits from our HTS products, it is much easier to list them. The savings and benefits are substantial and week after week it will continue to increase and protect your company’s bottom line!
